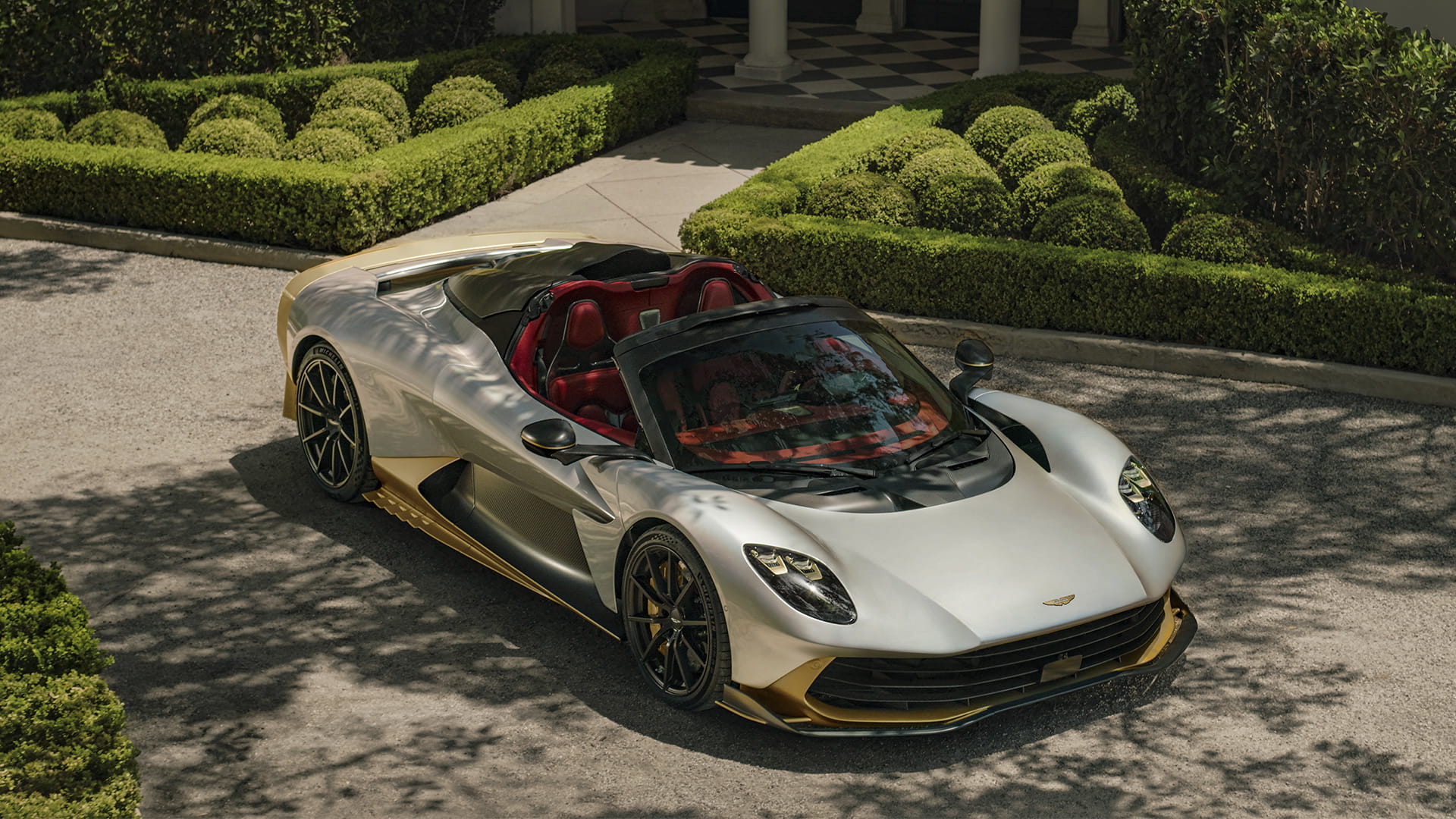

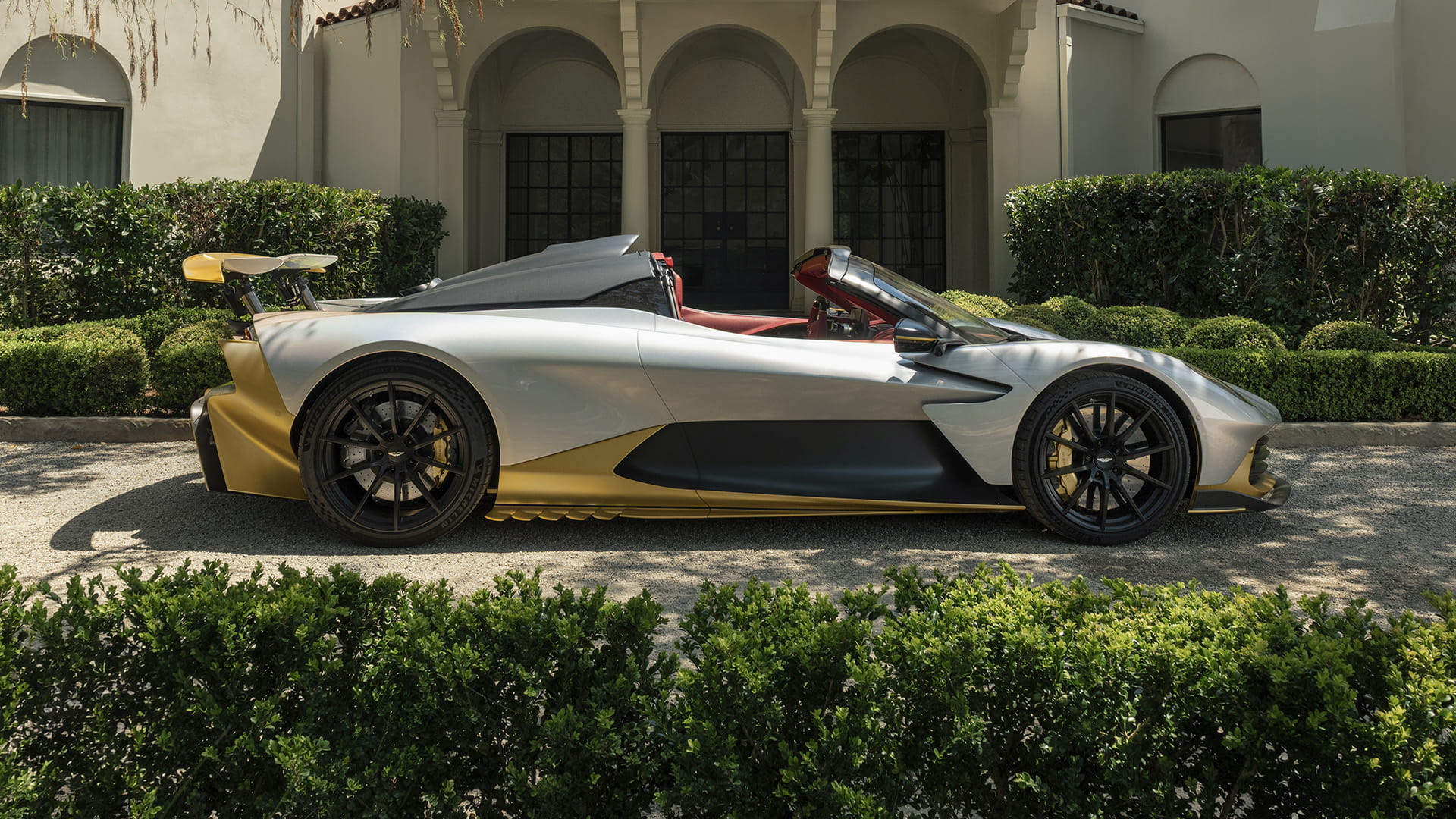

Valhalla Spider
A New Dimension of Performance.
The fastest open-cockpit Aston Martin ever made, Valhalla Spider brings a new dimension to mid-engined performance. Developed with Formula 1® expertise, shaped by Aston Martin and limited in availability. An invitation to the ultimate open-top supercar driving experience.
Mid-Engined Harmony.
Developed in collaboration with Aston Martin Performance Technologies, bringing Formula 1®-derived expertise from Aston Martin Aramco Formula 1® Team, Valhalla Spider’s bespoke carbon-fibre monocoque provides a stable foundation for its F1®-inspired pushrod front suspension, delivering an intuitive dynamic response. You feel the control as you turn into a corner and flow to the next. Small inputs, precise responses. Mid-engined balance exemplified.
*
Aston Martin Valhalla Spider Specifications
Key Facts
1079 PS combined total power output
- 2.5s 0-100 km/h (0-62 mph)
- 217 mph / 350 km/h vMax
- In excess of 600kg downforce at 150 mph (achieved in race mode)
- Unique combination of torque vectoring and active aerodynamics to deliver an engaging and dynamic drive
Engine
4.0 Litre V8 twin turbo petrol engine
- Hot 'V' configuration
- Dry sump
- Flat plane crankshaft
- Bespoke air to air charge cooling
- New turbochargers with 63mm compressor in a new housing
Hybrid Powertrain
3 x eMotors
- 2 x eMotors on the front axle (centrally mounted EDU - Electric Drive Unit)
- 1 x eMotor on the rear axle, integrated within a new and bespoke DCT.
- Torque vectoring delivered by Front Axle EDU
Transmission
8 Speed dual clutch transmission (DCT) with e-reverse
- Electronic differential
- Integrated rear motor within the DCT gearbox
Battery
High voltage battery; 6.1 kWh / 150 kW / 400V
- 400V System
Fuel Consumption
WLTP CO2 Emissions are undergoing homologation. These figures are intended for indicative comparability purposes. The development of the vehicle will shortly be completed. The fuel consumption you may achieve under real life driving conditions and CO2 produced will depend upon a number of factors including the accessories fitted after registration, variations in driving styles, weather conditions and vehicle load. The official figures for this vehicle will be released upon completion of testing.
Body
Bespoke Carbon fibre tub delivered in partnership with AMPT (Aston Martin Performance Technologies)
- Carbon fibre/composite body panels
- Carbon fibre front splitter
- Carbon fibre rear diffuser and active rear wing
- Roof scoop for engine air intake and transmission cooling, optimised for Valhalla Spider
- Dihedral doors
- Removable Black Fabric Roof (Market Dependant)
Aerodynamics
Active aerodynamics (front and rear)
- In excess of 600kg downforce at 150 mph (achieved in race mode)
- Active front wing (hidden behind grille) part of active aero system, reactive within 0.5 secs.
- Active rear wing part of active aero system, raises by 255mm in race mode, reactive within 0.5 secs
- Significant underbody aero effect, with flat floor design
Chassis and Braking
Hydraulic control system for suspension and aerodynamics
- Carbon ceramic brakes (CCB)
- Brake by wire
Wheels and Suspension
Forged aluminium wheels
- Front Wheel 20", with 285/30 ZR 20 Tyre
- Rear Wheel 21", with 335/30 ZR21 Tyre
- Bespoke Michelin Pilot Sport S 5 AML Tyres as standard
- Electric power assisted steering (EPAS)
- Push rod front suspension with inboard springs and dampers
- Multilink rear suspension
- Front axle nose lift functionality
Interior
Formula 1® inspired seating position. Driver focused with low hip to heel height ratio
- Low and close to centre line occupant seat positioning
Safety, Security & Advanced Driver Assistance Systems (ADAS)
Airbags - Driver & front passenger
- Seatbelt pre-tensioners
- Seatbelts - Seatbelt occupancy detection and indication
- Keyless entry with remote central locking
- Vehicle alarm and immobiliser
- 3D Surround View System (3D SVS)
- Automatic Emergency braking (AEB)
- Adaptive Cruise Control Stop & Go (ACC)
- Auto High Beam Control (AHB)
- Driver Attention Assist (DAA)
- Forward Collision warning (FCW)
- Hands Off Detection (HOD)
- Lane Keep Assist (LKA)
- Lane Depature Warning (LDW)
- Matrix High Beam Control (MHB) - Market Dependant
- Traffic Sign Recognition (TSR)
In Car Entertainment
New user interface and infotainment with bespoke functionality for Valhalla
- 10.25" Column mounted fully digital driver display
- 10.25" Central touchscreen infotainment display
- Wireless Apple CarPlay
- Connected car features
Technology
Digital rear view display
- Rear view parking camera
- Front and rear parking sensors
Valhalla Spider makes your favourite road feel new again. The rhythm of corners, the acceleration as you squeeze the throttle, the rush of air above you. On circuit, that same connection gives you the confidence to explore further. Extraordinary performance, with the composure to enjoy every moment.
Power, Flow and Chassis Mastery.
Valhalla Spider inspires confidence through the clarity of its responses. Integrated Vehicle Control coordinates suspension, braking, steering, aerodynamics and powertrain in real time. The result is composure over changing surfaces, stability under braking and the assurance to thread corners together in a natural rhythm.
Select Sport or Sport+ to suit the road. On circuit, Race mode brings the car’s Formula 1®-informed engineering into sharper focus, inviting you to explore more of its capability.

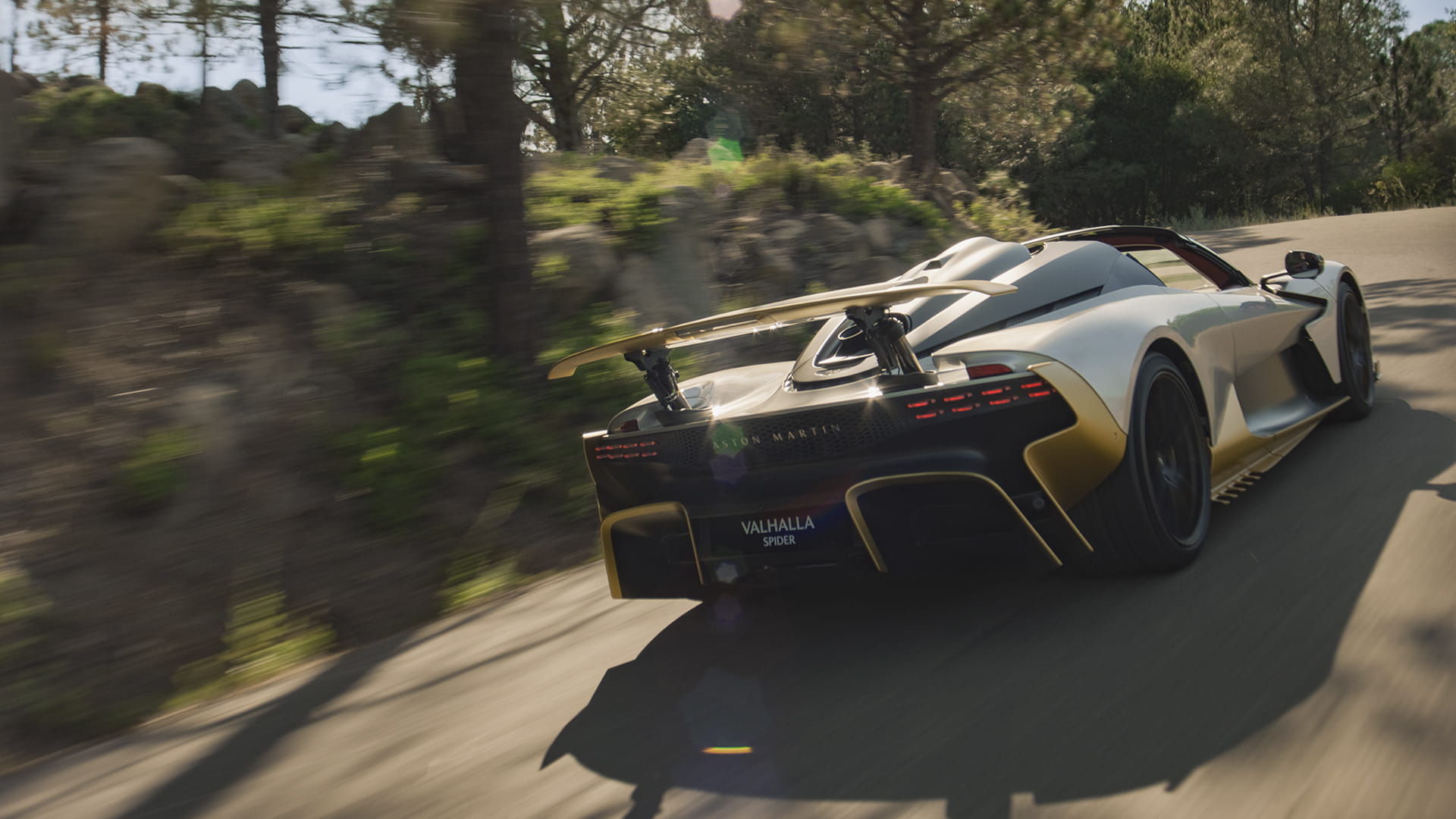

Powertrain
1,079 PS Working as One.
The bespoke electrified powertrain combines a twin-turbo V8 and three electric motors to deliver 1,079 PS and 1,100 Nm. Active front-axle torque vectoring works in concert with an electronic limited-slip differential at the rear, helping draw the nose into a corner, hold your chosen line and deliver assured traction on exit. Valhalla Spider maintains active front-axle torque vectoring continuously across its performance range up to its top speed of 217 mph.
The transmission-integrated third motor supports rapid shifts, sustaining the continuous, linear acceleration. Accompanied by Valhalla Spider’s colossal V8 soundtrack, made more thrilling by its open cockpit.
V8, INTENSIFIED.
Mounted directly behind the occupants, the bespoke 4.0-litre turbocharged flat-plane V8 delivers an astonishing 207 PS per litre. Featuring a dry sump to withstand extreme lateral forces plus twin-scroll turbos, it utilises a hot-V configuration and lightweight valvetrain architecture to maximise thermal efficiency and throttle response.

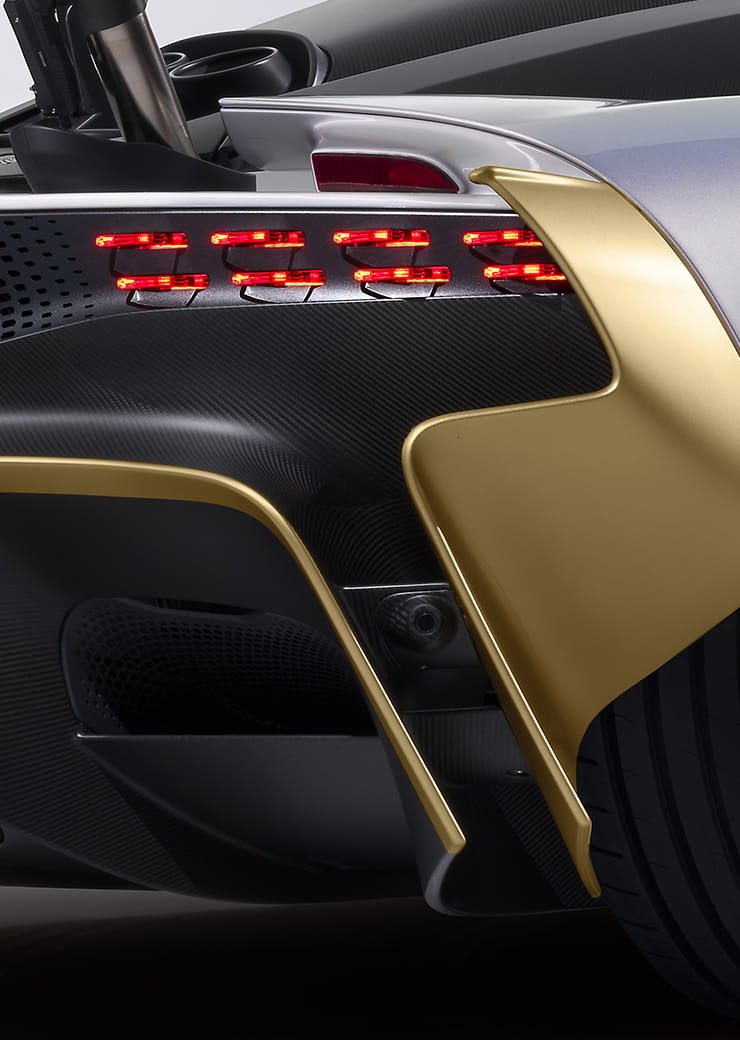

HYBRID SYNCHRONISATION.
An eight-speed dual-clutch transmission delivers rapid shifts, supported by electric torque for continuous acceleration. Front electric motors provide reverse in every drive mode. This ingenious arrangement removes the need for a mechanical reverse gear, saving both weight and space.
ANALOGUE-DIGITAL TECHNOLOGY.
Digital intelligence operates invisibly within Valhalla Spider. Managed by Integrated Vehicle Control, onboard processors calculate grip limits and aerodynamic configurations continually to refine driver inputs while preserving absolute driving purity.

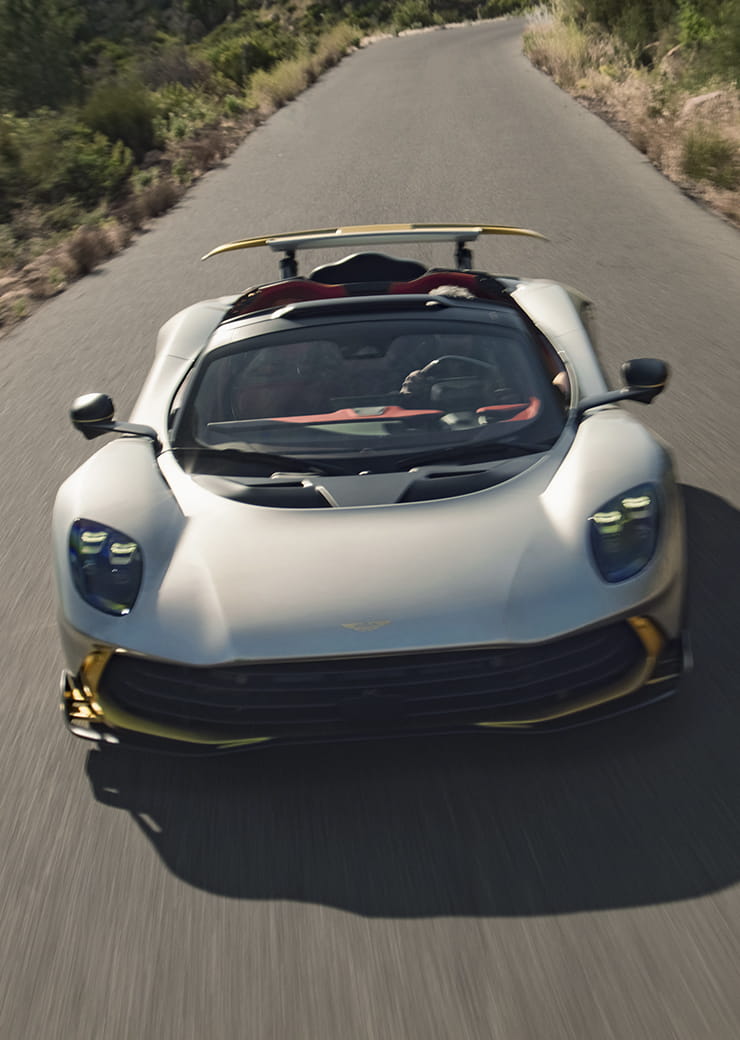

INBOARD PRECISION.
F1®-inspired pushrod front suspension with inboard Bilstein DTX adaptive dampers works with a five-link rear setup to control wheel and body movement. Bespoke stability-control and aerodynamic calibrations account for roof-on and roof-off driving, preserving Valhalla Spider’s unflinching poise across changing surfaces.

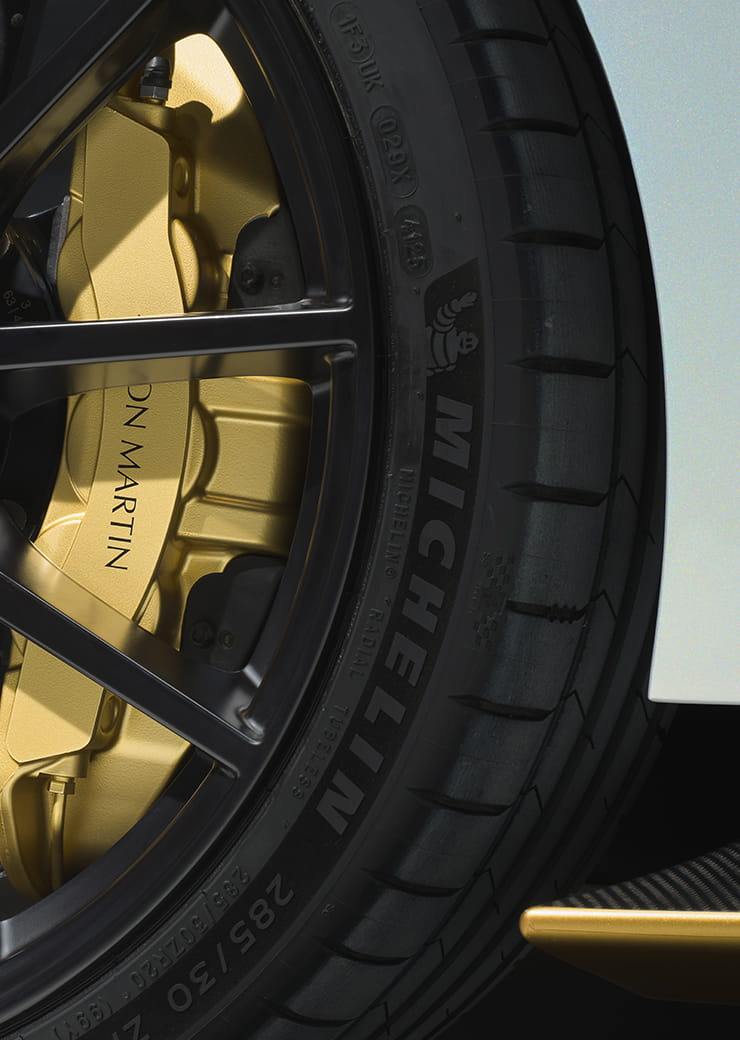

UNWAVERING CONTROL.

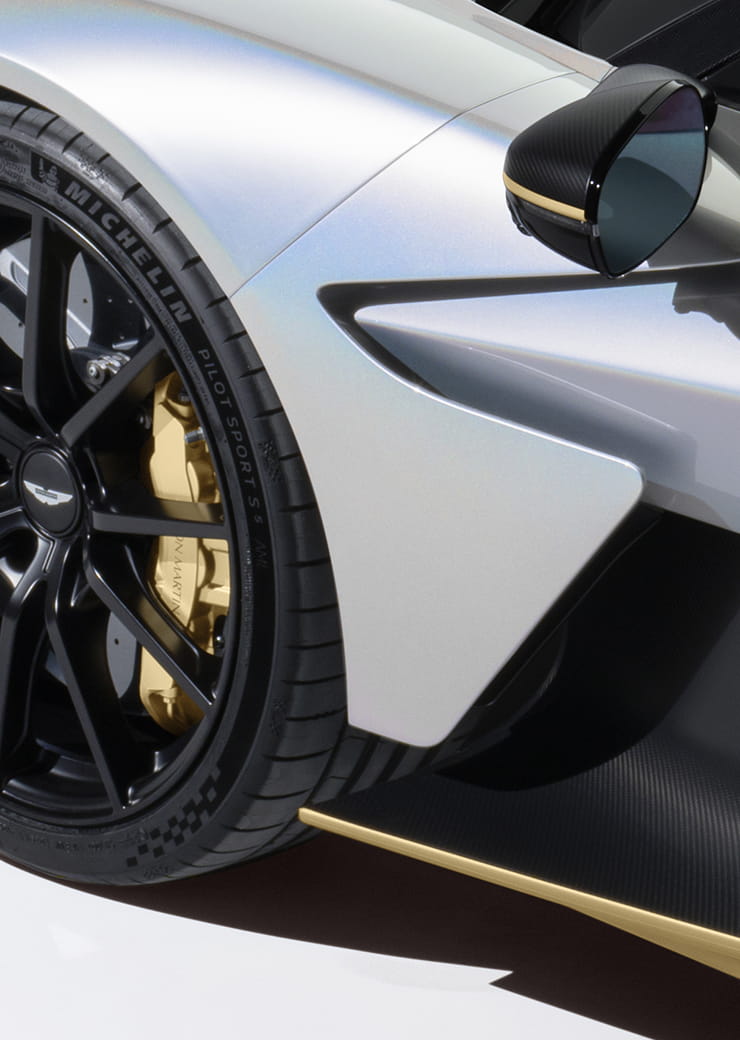

Standard Brembo carbon ceramic discs, measuring 410 mm at the front and 390 mm at the rear, shed unsprung mass while withstanding extreme temperatures on road or track. Forged alloy wheels deliver razor-sharp steering feel, while standard lightweight titanium quad-exit tailpipes provide pure acoustic theatre.

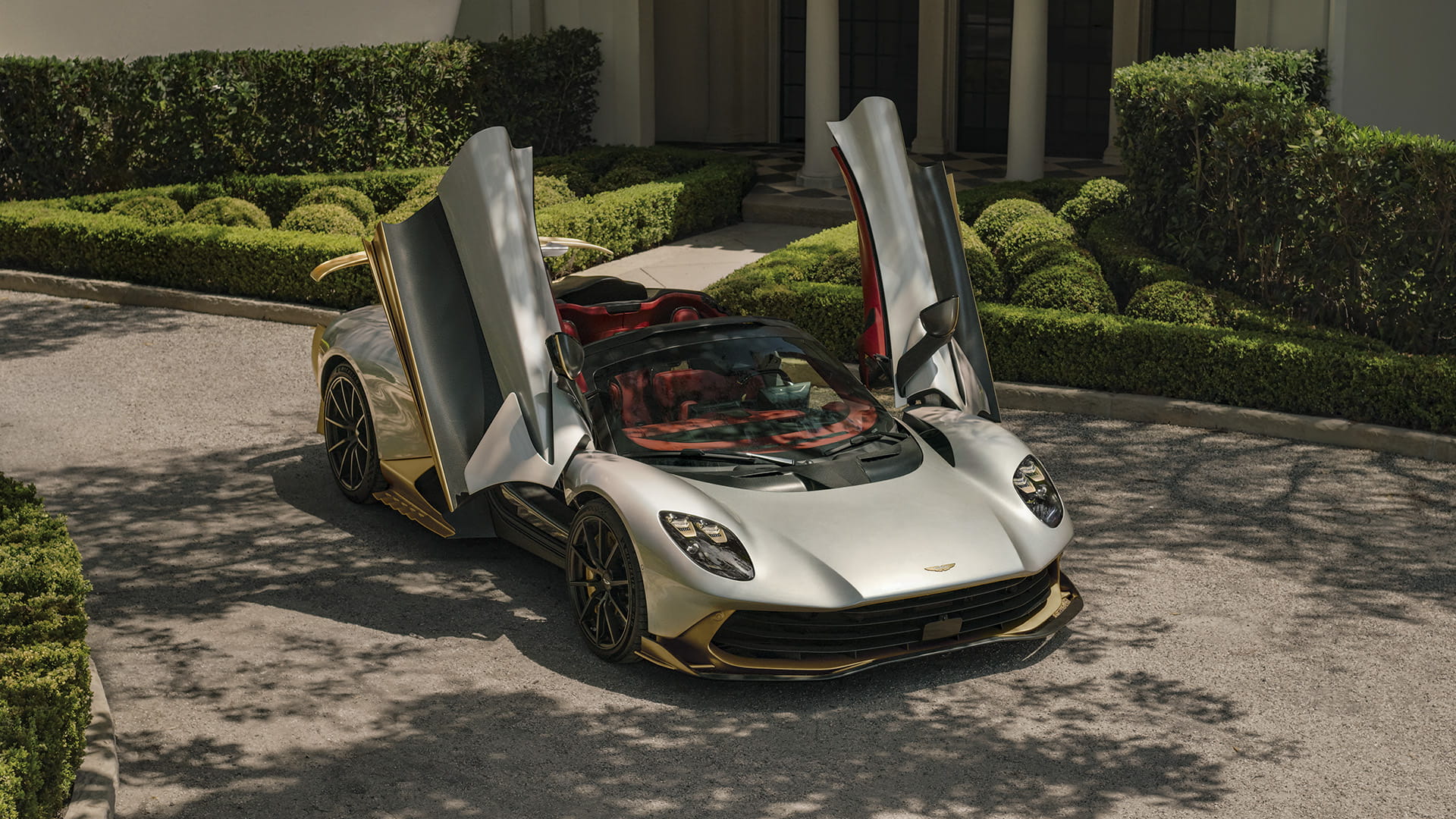

Exterior
Sculptural Elegance and Proportion.
Sinuous upper bodywork carries the eye along Valhalla Spider’s silhouette. Below, technical carbon-fibre surfaces guide airflow around and beneath the car. Each has a distinct purpose. Together, they preserve the signature flowing proportions of Aston Martin, with an open cockpit at their centre.

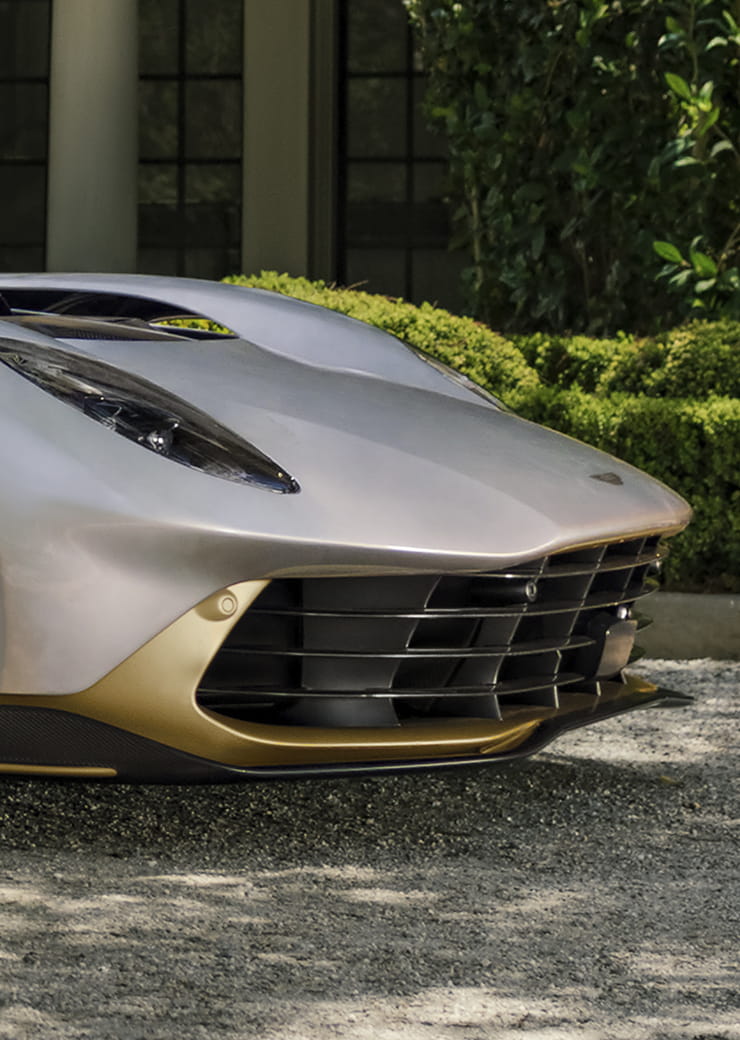

WORKING WITH THE AIR.
A concealed active front wing manages airflow beneath the car. Above, a unique wind deflector guides air over the occupants for greater comfort, while drawing cooling airflow towards the bespoke snorkel. Reprofiled and raised by 35 mm, the snorkel helps sustain performance with the open cockpit.
The wind deflector clips into place in moments, then folds into three parts for discreet storage in new 15-litre sill compartments.

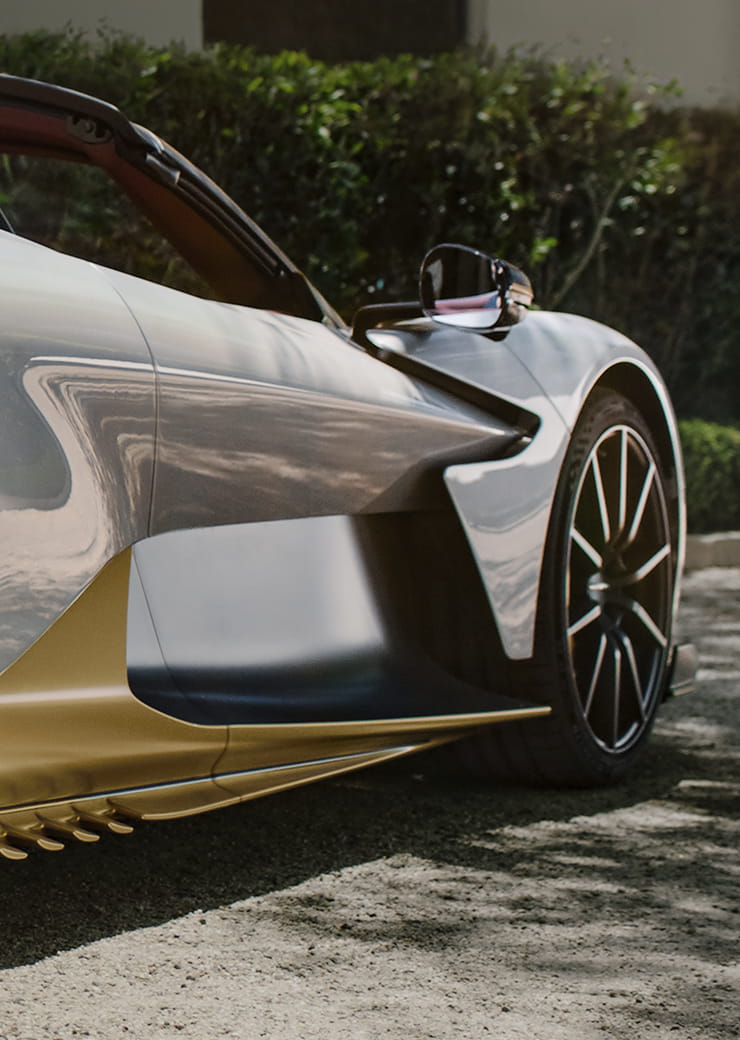

AN UNINTERRUPTED SILHOUETTE.
An unbroken sweep of elegant bodywork defines Valhalla Spider’s silhouette, preserving the purity of the profile while serving vital aerodynamic functions. Door turning vanes guide air from the front wheelarches towards concealed cooling intakes, while Formula 1®-inspired inboard suspension dampers ensure uninterrupted airflow along the flanks. Functional detail below, pure flowing surfaces above. Unmistakably Aston Martin.

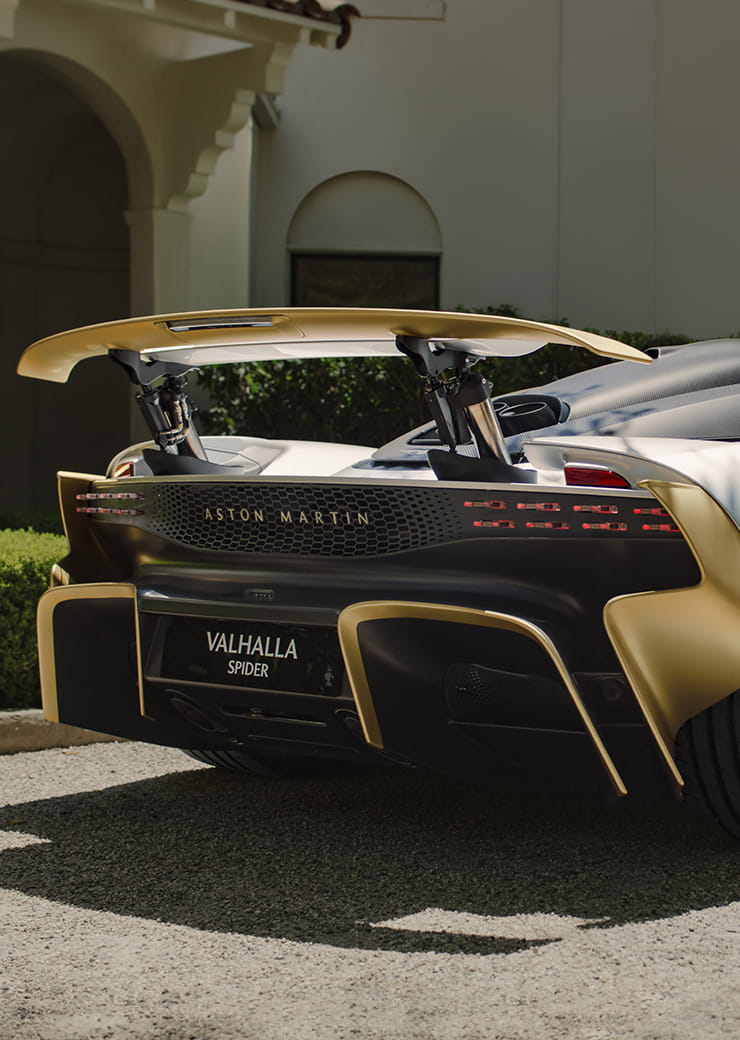

BALANCE AT SPEED.
The dual-element rear T-wing rises 255 mm in Race mode to manage downforce. Above 150 mph, the drag reduction system adjusts the aerodynamics to reduce resistance as speed increases. Brake hard and the rear wing becomes an airbrake in less than half a second, working with the active front wing to keep the car settled.

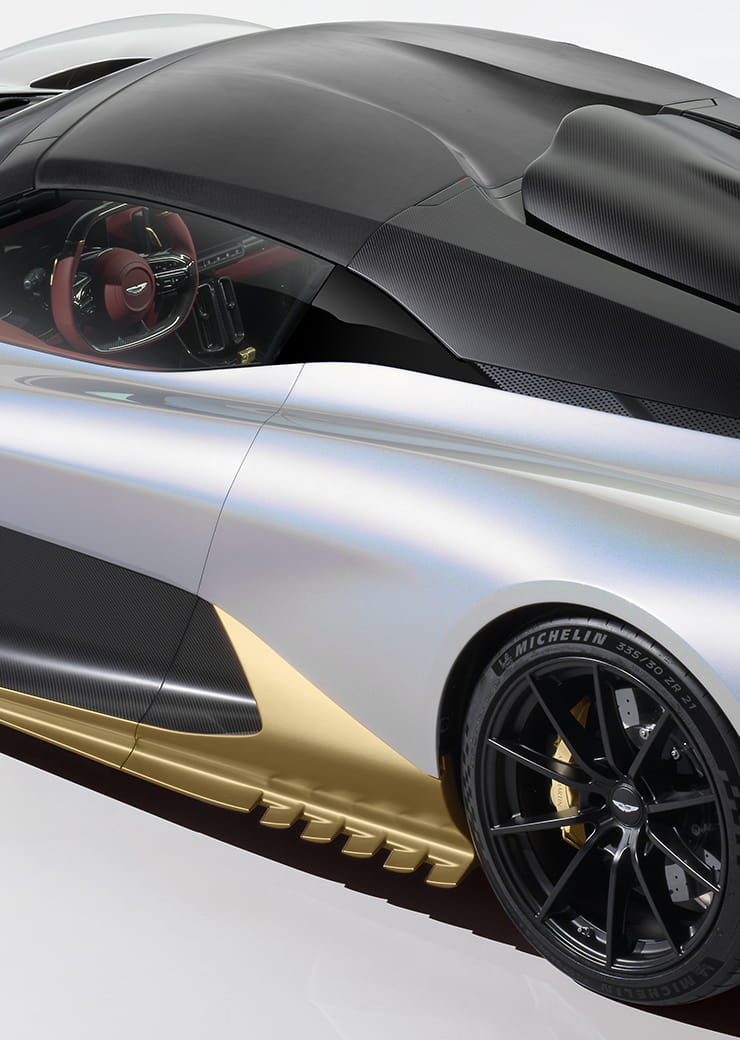

OPEN TO CHOICE.
The standard stowable fabric roof offers flexibility for changing weather, with a maximum speed of 124 mph when fitted. With the optional carbon hardtop in place or the cockpit open, Valhalla Spider reaches its full 217 mph maximum speed.*
*Specifications and standard equipment may vary by market.
Interior
A Cockpit Shaped Around You.
The cockpit design wraps lightweight composite architecture directly around the occupants, creating a protective, driver-centric space. Engineered wind-deflector geometry preserves conversational clarity and occupant comfort, inviting you to settle into the pleasures of open-air driving.

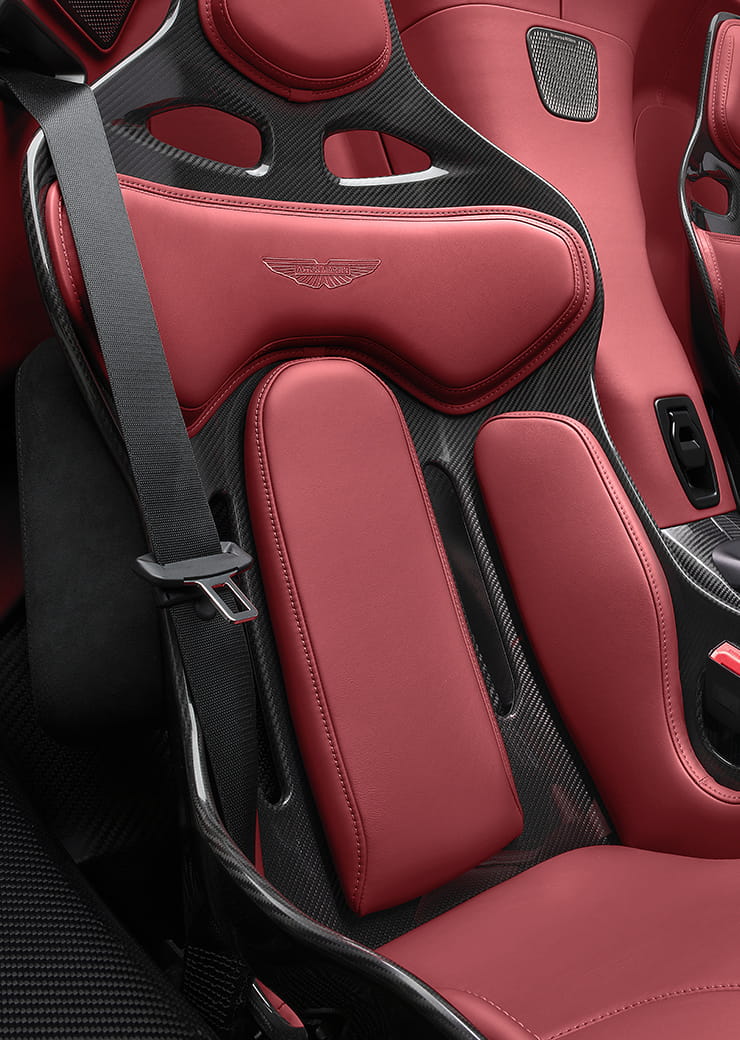

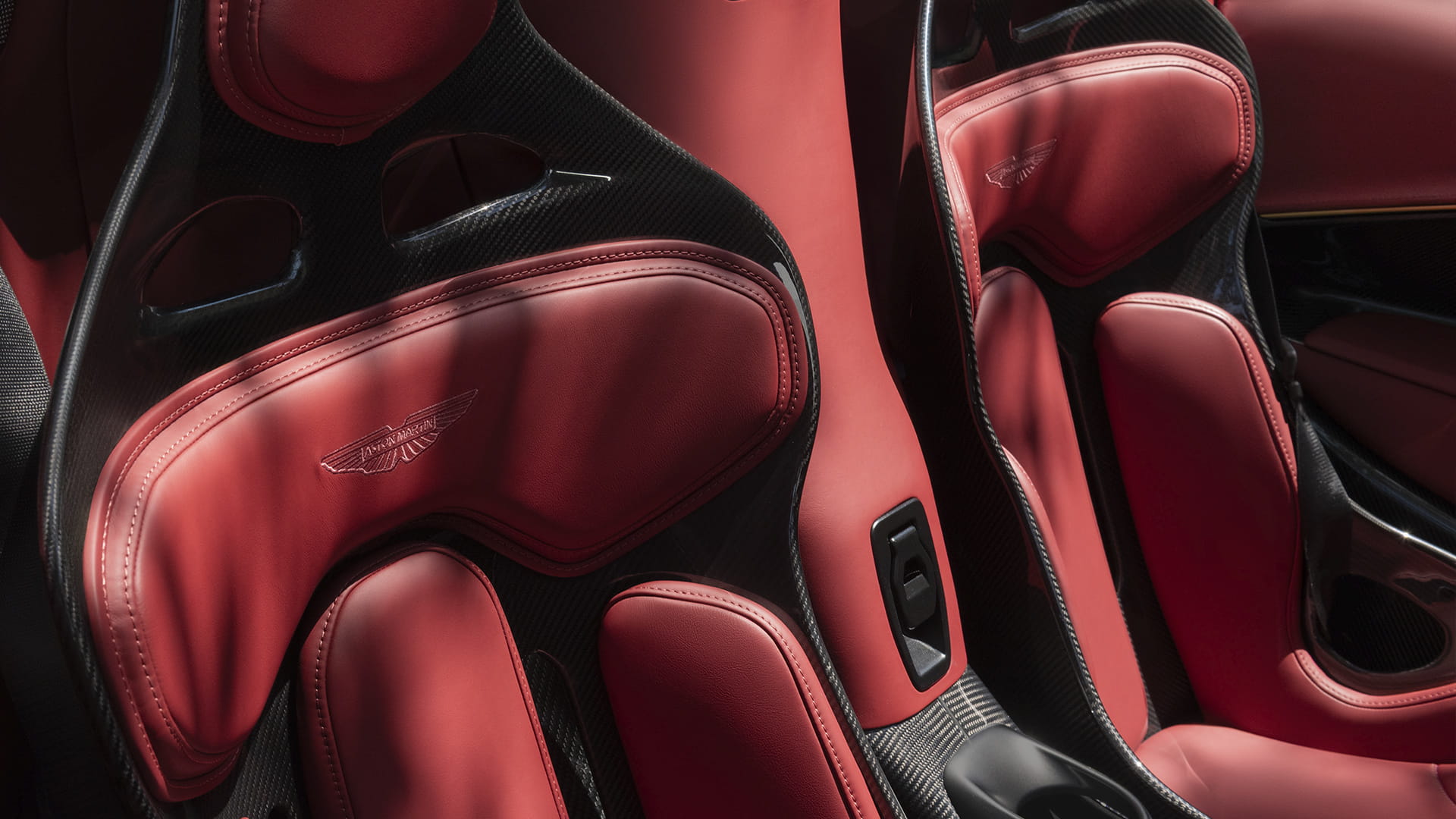

CARBON FIBRE TOURING SEAT.
The Carbon Fibre Touring Seat comes as standard, offering greater comfort on longer journeys and easier entry and exit with the roof in place. Raised footwells create an F1®-inspired hip-to-heel position, placing you low within the chassis. An invitation to follow the road further.
For maximum support during dynamic driving, a race-inspired single piece carbon fibre seat is available as a no-cost option.

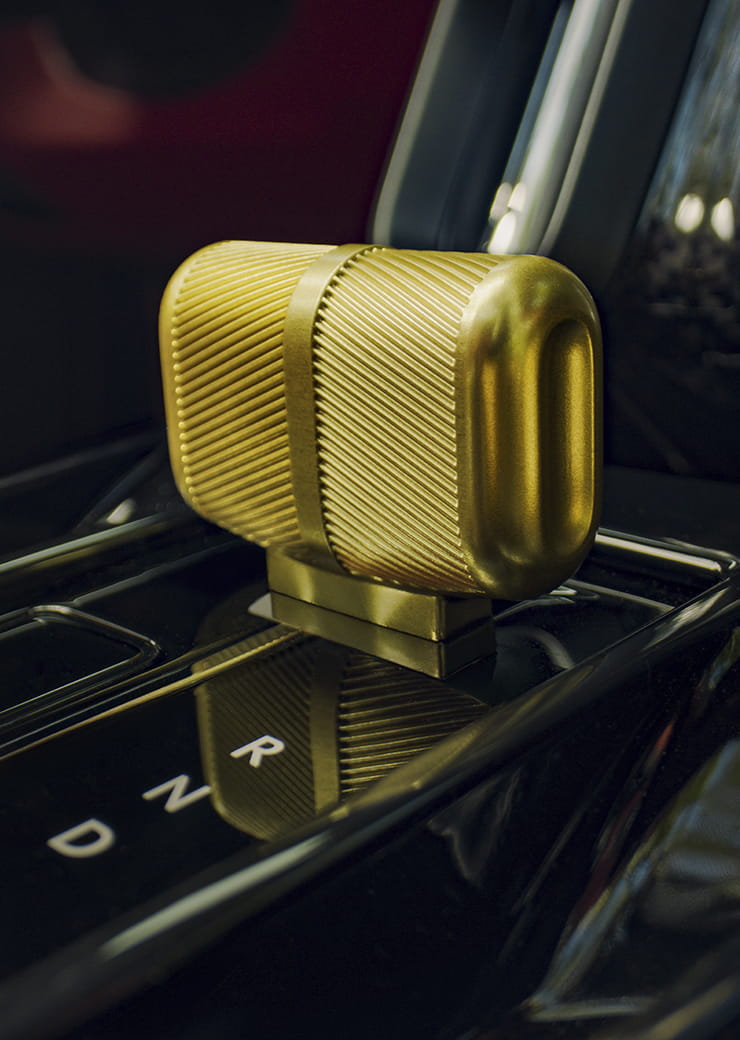

Q BY ASTON MARTIN.
Q by Aston Martin offers owners the opportunity to express their imagination. For Valhalla Spider, possibilities range from tinted carbon-fibre finishes in Podium Green, Teal and Bronze to bespoke liveries and individual combinations of interior materials. Colour, texture and finish. Yours to choose.
TACTILE INTIMACY.
Knurled metal on the drive-mode dial creates an inviting contrast against raw Alcantara® and technical carbon weaves. Every touchpoint delivers an immediate physical connection to the chassis.

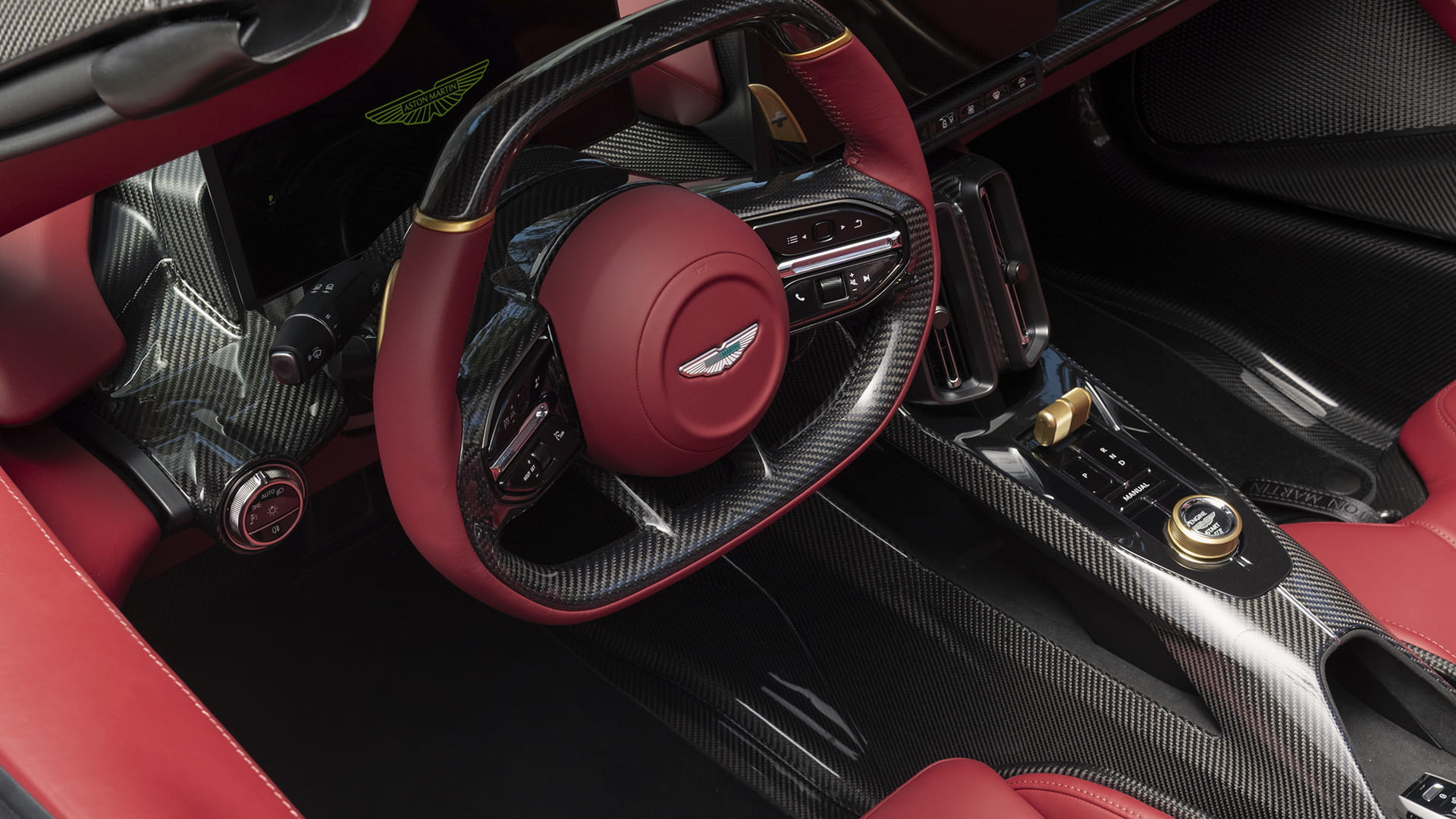

Technology
Clarity and Connection.
Valhalla Spider brings clear information and intuitive controls to the driving environment. Dedicated instrument and central displays put essential functions within reach, while a digital rear-view mirror maintains a clear view behind. Familiar connected features support the journey, leaving you free to concentrate on the road ahead.

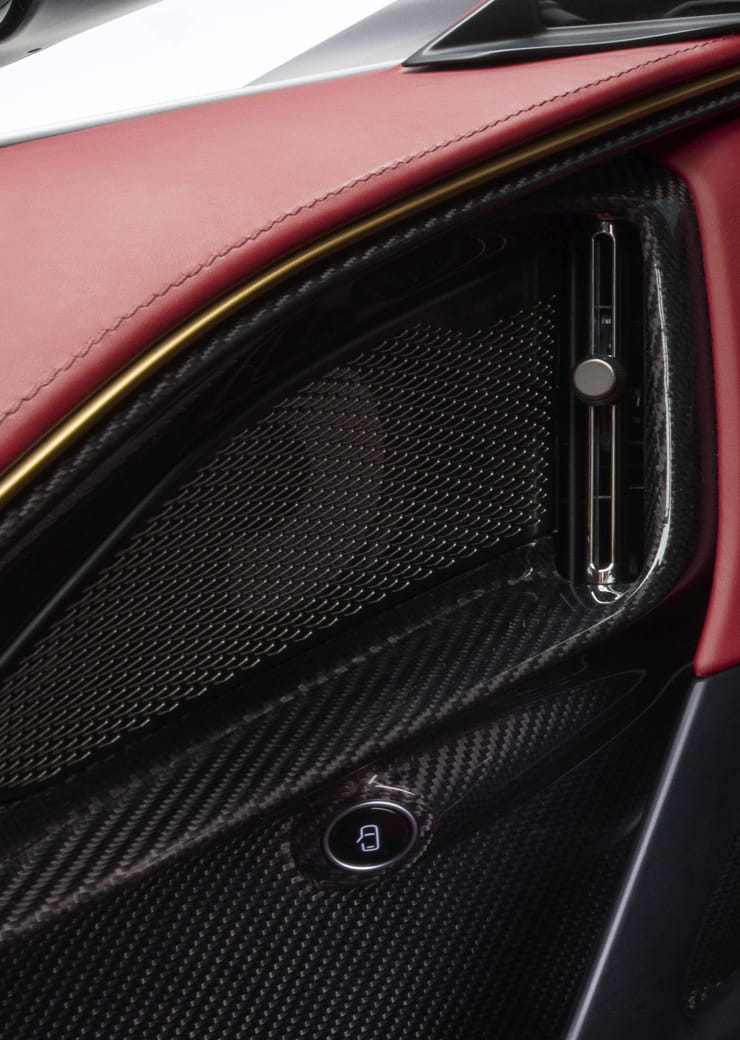

YOUR OWN SOUNDTRACK.
Lightweight transducers mounted directly to the carbon-fibre monocoque turn the cockpit tub into an active acoustic amplifier, delivering high-fidelity sound with absolute clarity against the open-air intake note. For a more immersive musical experience, choose the optional Bowers & Wilkins audio system.
A CLEAR VIEW.

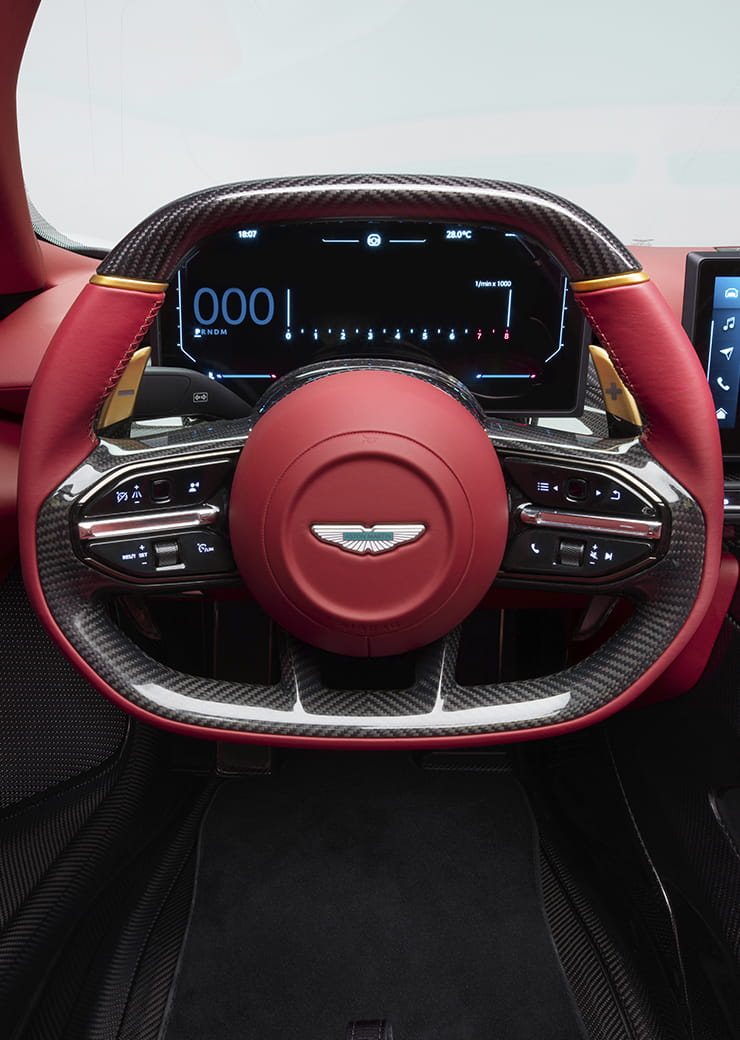

A 10.25-inch instrument display places driving information directly ahead, complemented by a 10.25-inch central touchscreen. The Full Display Mirror replaces the conventional rear-view mirror with a digital image, giving the driver a clear view of the disappearing road behind.

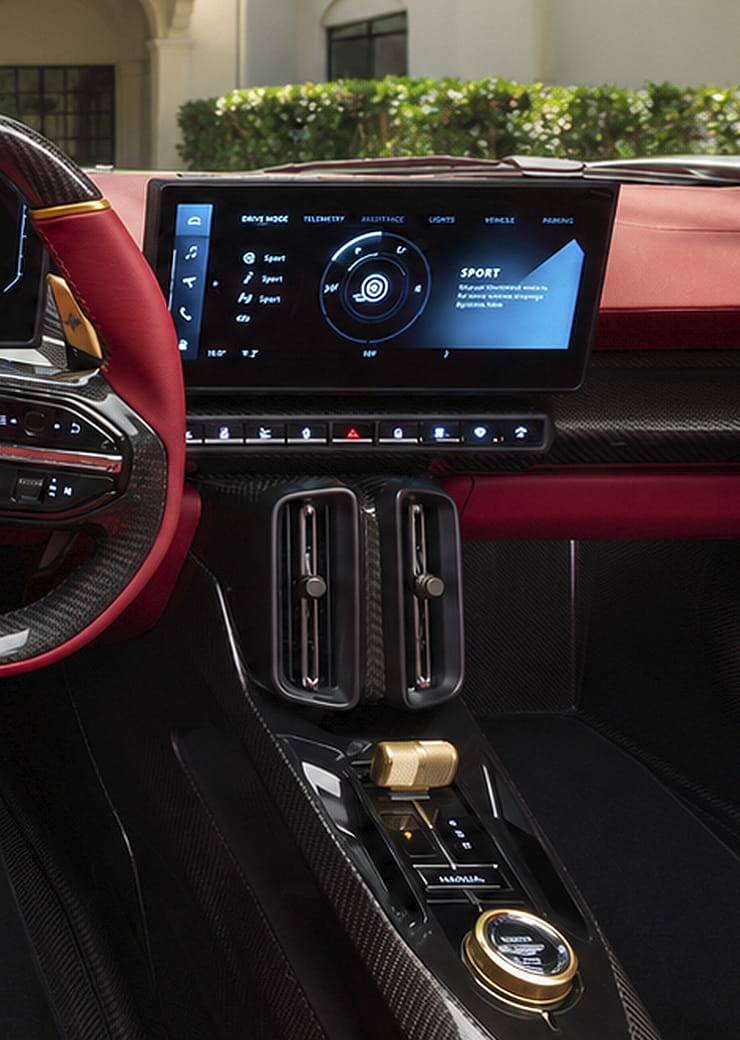

CONNECTED TO YOUR WORLD.
Apple CarPlay brings familiar smartphone functions into the cockpit, alongside track telemetry displays informed by Aston Martin Aramco Formula 1® Team drivers. In Race mode, a large linear tachometer makes engine speed easier to read at a glance, keeping your focus on the circuit ahead. Everyday convenience. Motorsport precision.
